Account Counterparts
| Lines of Code | 917 |
| Technical name | to_account_counterpart |
| License | OPL-1 |
| Website | https://viindoo.com/apps/app/17.0/to_account_counterpart |
| Read description for | v 10.0 v 11.0 v 12.0 v 13.0 v 14.0 v 15.0 v 16.0 |
| Required Apps | Invoicing (account) Discuss (mail) |
| Included Dependencies | Viindoo Base Viindoo Accounting |
| Extensions | Accounting & Financial Reports E-Wallet Account Counterpart - Account Reconciliation Account - Allow updating tax grids - Without Counterpart Update |
Demo video: Account Counterparts
The Problem
In the accounting feature, a single journal entry may contain multiple debit journal items and multiple credit journal items. However, there is no way for us to identify the countered line(s) of a line and its countered account(s) which may cause some troubles when:
- Making reports that require showing up counterparts and countered accounts of a transaction.
- Identifying types of business transactions. For example, according to Vietnam Accounting Standards, revenues are from both loan interests and exchange. rate profit is also encoded into account 515. It is impossible to build a Cash Flow Statement while it requires separating those revenues.
Features at a glance
Create counterpart links for journal items, providing essential information to support the handling of accounting operations.
| ID | Account | Countered Accounts | Debit | Credit | Countered Journal Items |
| 1 | 131 | 5111, 5113 | 150 | 0 | [2], [3] |
| 2 | 5111 | 131 | 0 | 100 | [1] |
| 3 | 5113 | 131 | 50 | [1] |
Features in Details
- Automatically create counterparts generator when entering journal entries
- When an accounting entry is entered, the system automatically creates counterparts generator from the entries: - For entries with only one Debit and one Credit, the system creates a corresponding link between these two entries. - For entries with multiple Debit entries corresponding to multiple Credit entries or vice versa, the system creates counterparts generator with the following priority order: Prioritize pairs of entries with the same counterpart, with equal values that can be matched, the remaining entries will be created counterparts generator according to the ratio.
- Create corresponding links
- Allows the Chief Accountant to create missing counterparts for account entries or recreate counterparts for all existing entries.
- It also allows limiting the number of entries when creating by selecting one or more journals.
- Cron Job: Create Counterpart scheduler
- Use the "Scheduled Actions" menu in the system or write code to configure a cron job to run periodically, such as daily or weekly.
Some Use Cases for Proof of Concepts
Entry with One single debit item and One single credit item
- a. Entry
- [1] Debit 131 (Customer Receivable): $100;
- [2] Credit 511 (Sales Revenue): $100.
- b. Counterpart Mapping
- Debit Line: [1];
- Credit Line: [2];
- Countered Amount: $100.
- c. List view demostration
ID Account Countered Accounts Debit Credit Countered Journal Items 1 131 511 100 0 [2] 2 511 131 0 100 [1] - a. Entry
Entry with One single debit item and Multiple credit items
- a. Entry
- [1] Debit 131 (Customer Receivable): $150;
- [2] Credit 5111 (Goods Sales Revenue): $100;
- [3] Credit 5113 (Service Sales Revenue): $50.
- b. Counterpart Mapping
- 1st Counterpart:
- Debit Line: [1]
- Credit Line: [2]
- Countered Amount: $100
- 2nd Counterpart:
- Debit Line: [1]
- Credit Line: [3]
- Countered Amount: $50
- 1st Counterpart:
- c. List view demonstration
ID Account Countered Accounts Debit Credit Countered Journal Items 1 131 5111, 5113 150 0 [2], [3] 2 5111 131 0 100 [1] 3 5113 131 50 [1] - a. Entry
Entry with Multipe debit items and Multiple credit items
- a. Entry
- [1] Debit 1311 (Customer Receivable): $120;
- [2] Debit 1312 (Customer Receivable): $30;
- [3] Credit 5111 (Goods Sales Revenue): $100;
- [4] Credit 5113 (Service Sales Revenue): $50.
- b. Counterpart Mapping
- 1st Counterpart:
- Debit Line: [2];
- Credit Line: [3];
- Countered Amount: $20.
- 2nd Counterpart:
- Debit Line: [2];
- Credit Line: [4];
- Countered Amount: $10.
- 3rd Counterpart:
- Debit Line: [1];
- Credit Line: [3];
- Countered Amount: $80.
- 4th Counterpart:
- Debit Line: [1];
- Credit Line: [4];
- Countered Amount: $40.
- 1st Counterpart:
- c. List view demonstration
ID Account Countered Accounts Debit Credit Countered Journal Items 1 1311 5111, 5113 120 0 [3], [4] 2 1312 5113 30 0 [4] 3 5111 1311 0 100 [1] 4 5113 1311, 1312 0 50 [1], [2] - a. Entry
Technical Description
Journal Items
The following key stored and computed fields have been added to the Journal Item model (account.move.line):
- Countered Journal Items: the journal items that are counterparts of the current journal item.
- Countered Accounts: the accounts that are counterparts of the account of the current item.
- Countered Amount: The matched amount that has been set as countered amount for this journal item.
- Countered Status: A technical field to indicate that the journal item has either countered fully or partially or not-yet-countered.
Journal Entries
The following key stored and computed fields have been added to the Journal Entry model (account.move):
- Countered Status: A technical field to indicate that the journal entry has either countered fully or partially or not-yet-countered.
Wizards
Counterparts Generator is a wizard to allow the accounting manager to either generate missing counterparts for account journal items or regenerate counterparts for all the existing items. It also allows you to limit the number of entries during generation by selecting one or more journals.
Journal Item Counterparts
A new technical model named 'Journal Item Counterpart' (account.move.line.ctp) is created to map a credit journal item with a debit journal item which has the following key fields:
- dr_aml_id: The debit journal item (also known as 'account move line').
- cr_aml_id: The credit journal item.
- countered_amt: the amount that matches the counterpart operation of the two journal items above mentioned.
When a counterpart operation is carried out, a new record of the Journal Item Counterpart model will be created to map a credit journal item with a debit journal item to indicate that the later journal item is a counterpart with a countered amount.
Known Issues
Notice: When this module is newly installed, the system will automatically generate counterparts for existing journal entries through a background scheduled task (cron job). This process may take some time depending on the number of journal entries in the system.
Editions Supported
- Community Edition
- Enterprise Edition
Installation
- Navigate to Apps.
- Search with keyword to_account_counterpart.
- Press Install.
Note:
- After installing to_account_counterpart module, Invoicing app is auto-installed.
- To have a full feature-related observation of this module, you need to install Accounting app.
- The journal entries can be automatically or manually accounted.
Instruction
Instruction video: Account Counterparts

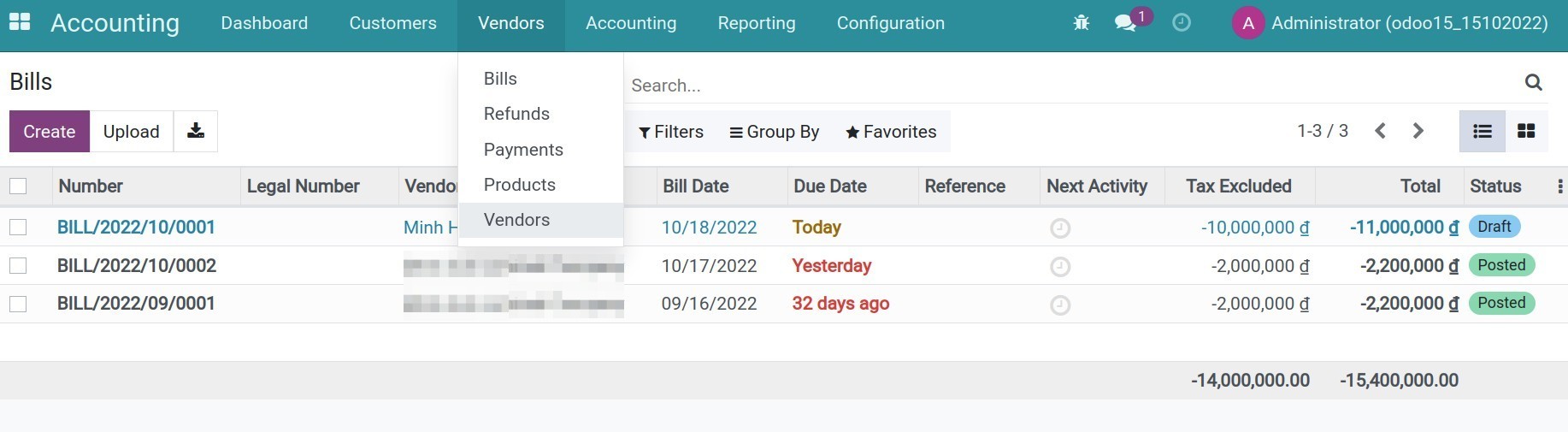

Step 1: Go to Accounting App > Vendors > Bills, press Create button to create a bill.

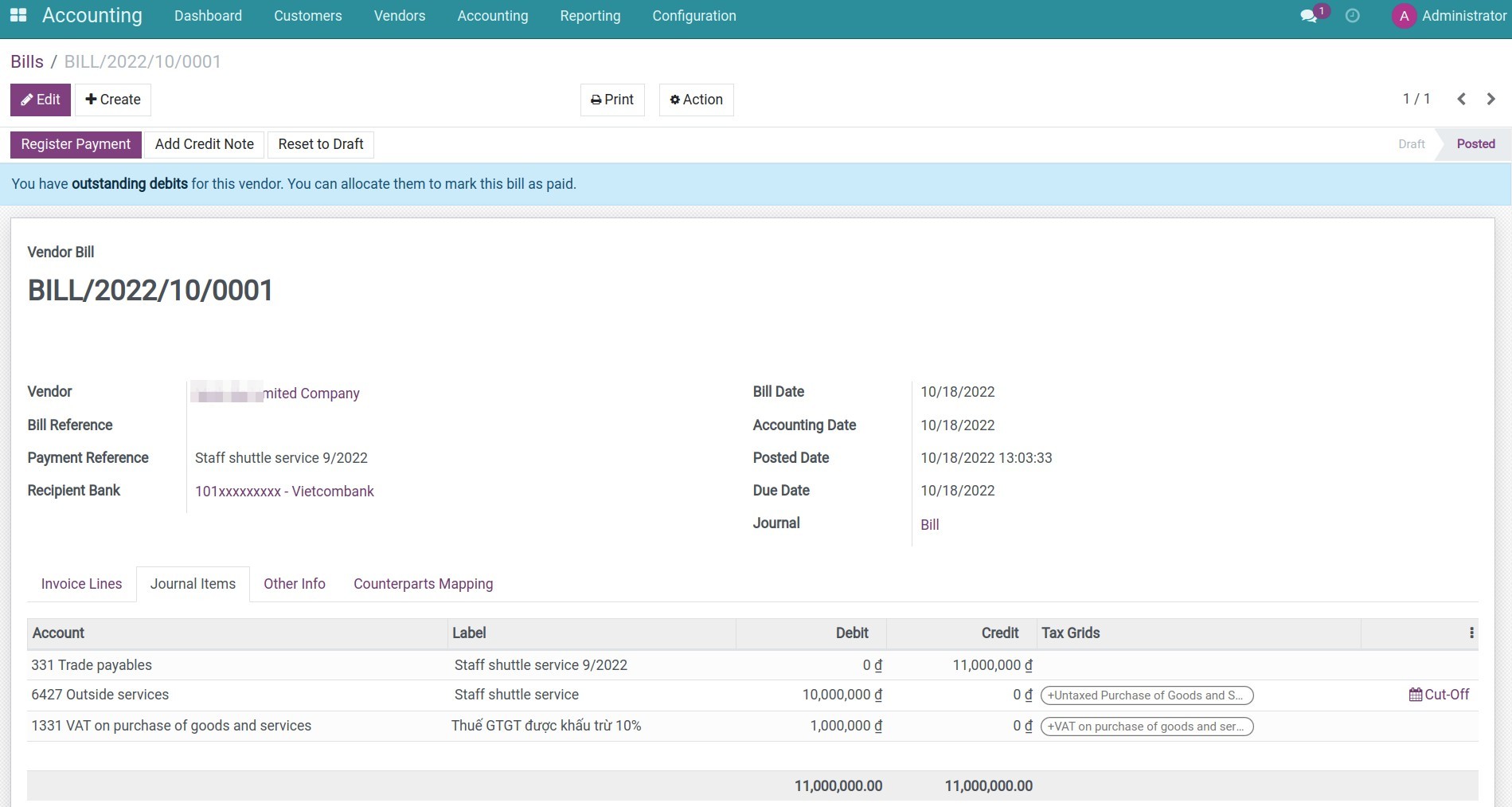

Step 2: Press Confirm button and review the journal items on the Journal Items tab.

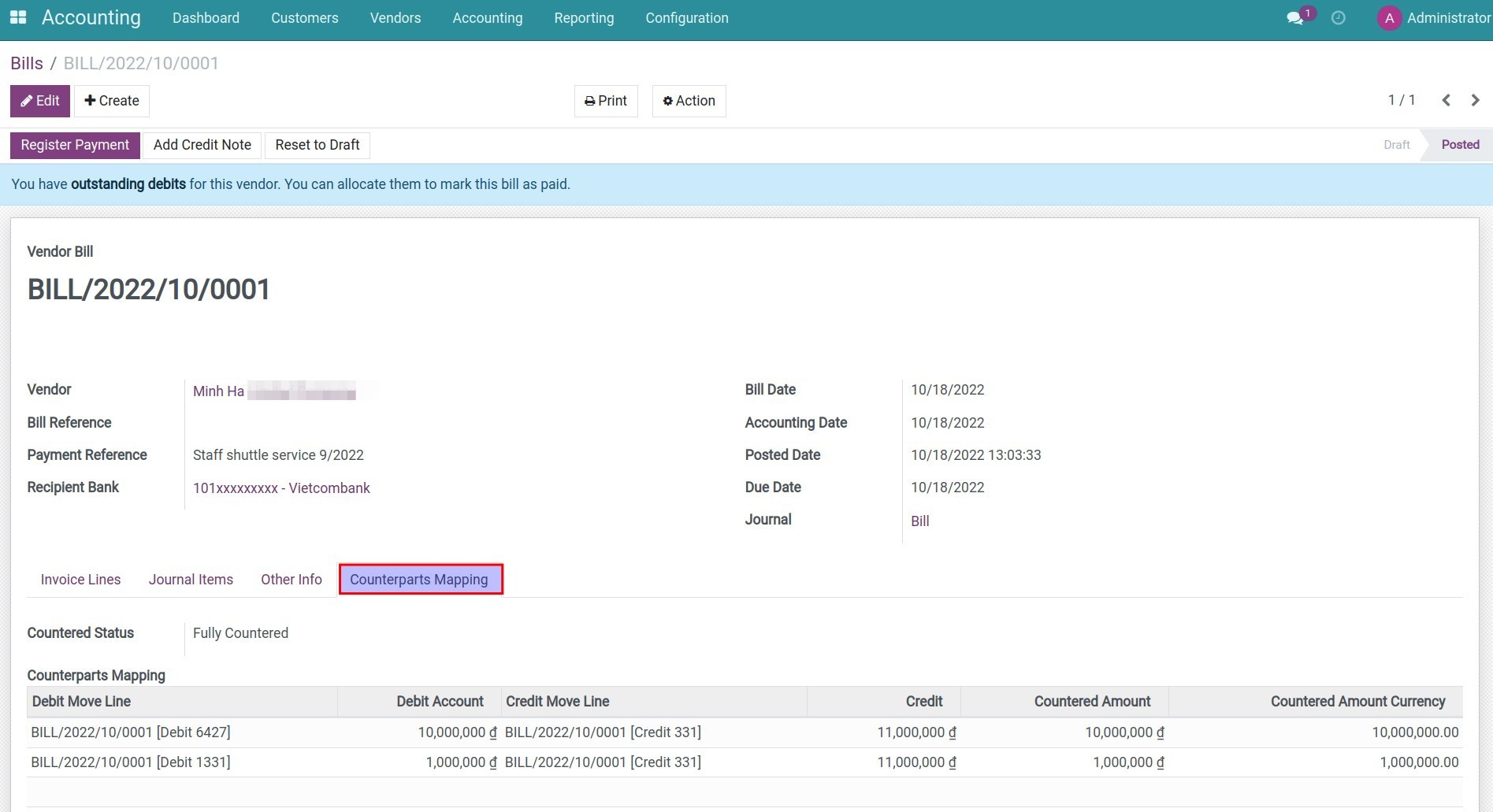

Step 3: Check the accounting information in Counterparts Mapping tab.

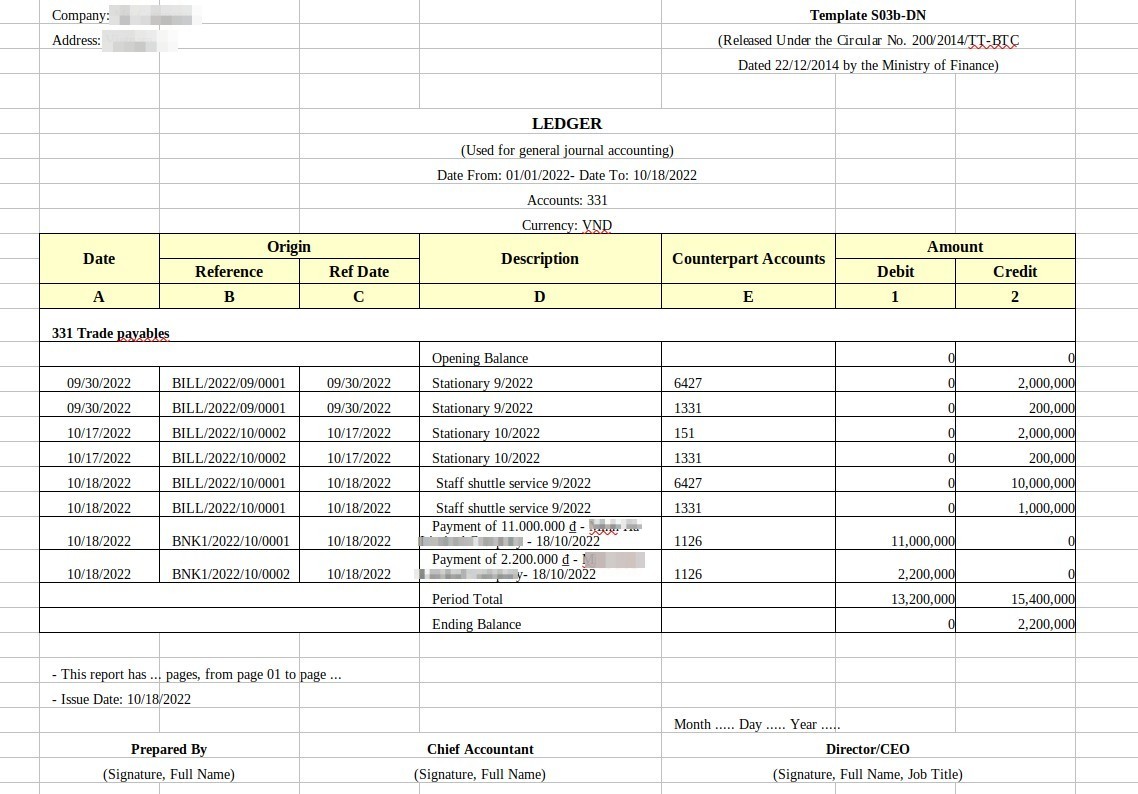

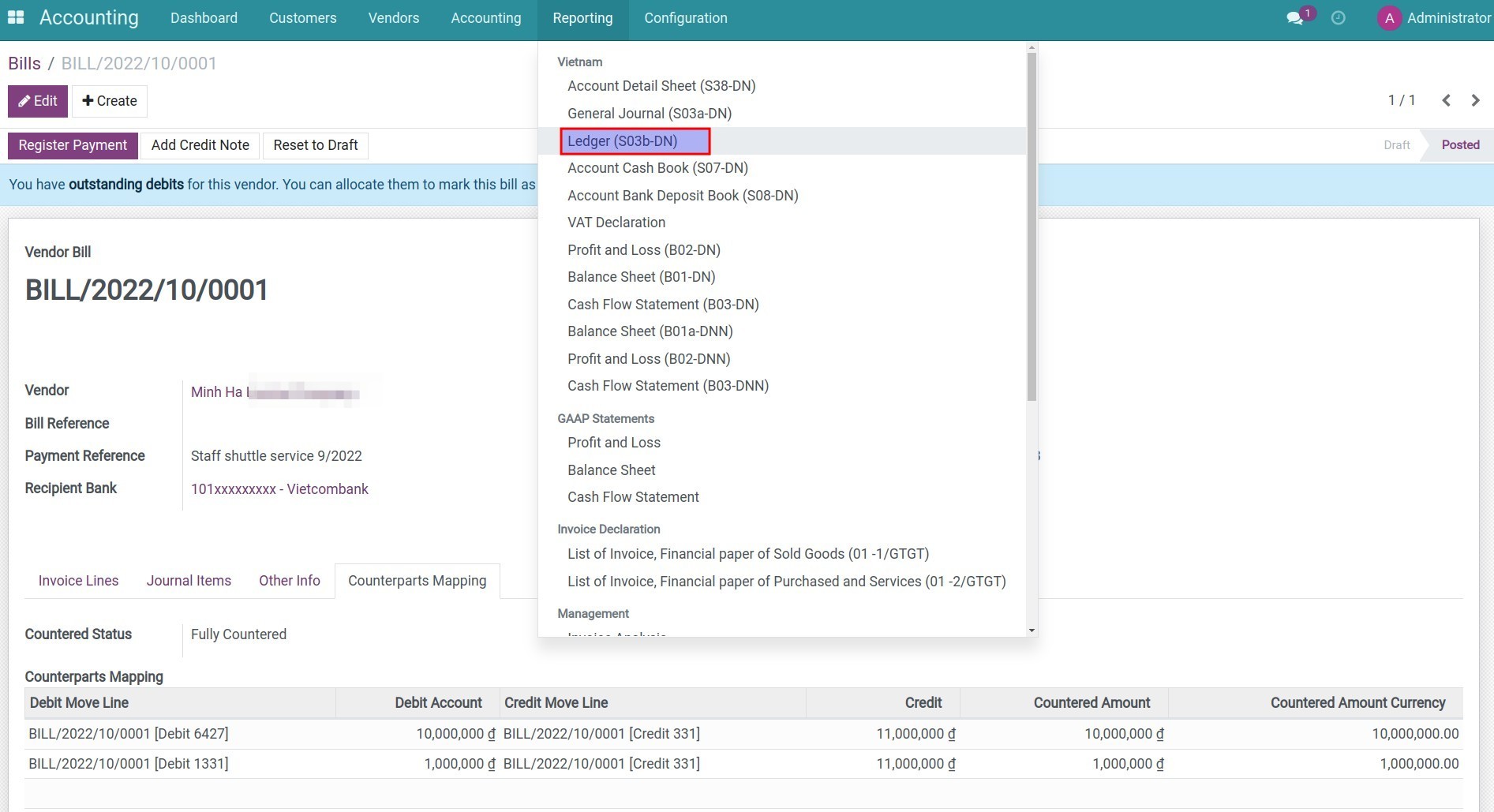

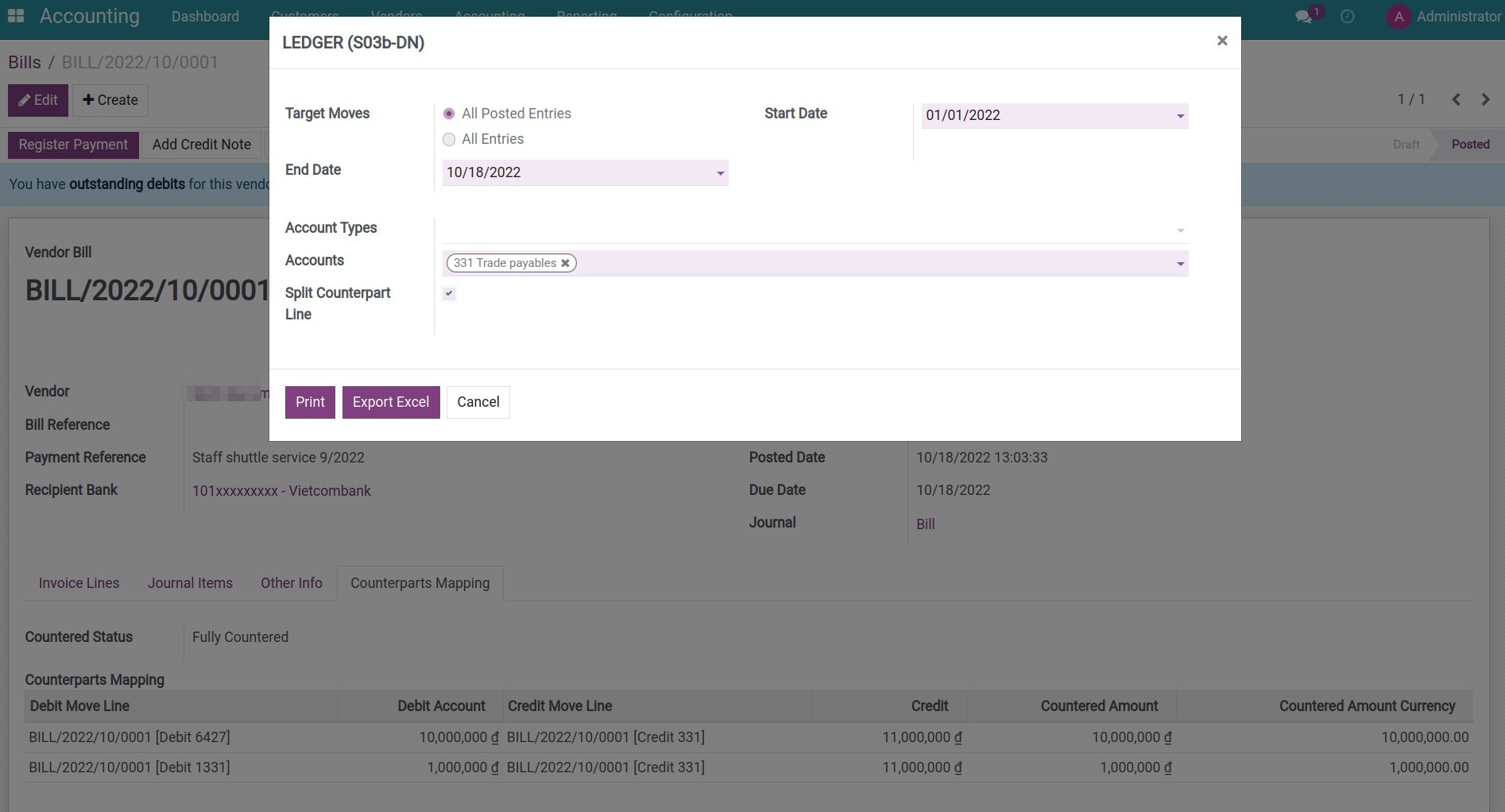

Step 4: Print the accounting template related to countered accounts. For example, print Ledger (S03b-DN).
Step 5: Go to Accounting app > Accounting > Journal Items, search the information related to countered accounts by the filter/groups tool. For example, control the balance of account 331 according to the partners and the countered accounts.
Note: You need activate developer mode (debug mode) to see Journal Items menu.
