Web Gantt
by Viindoo
| Lines of Code | 5600 |
| Technical name | viin_web_gantt |
| License | OPL-1 |
| Website | https://viindoo.com/apps/modules/18.0/viin_web_gantt?force_show=1 |
| Read description for | v 16.0 v 17.0 v 19.0 |
| Extensions | Viindoo Manufacturing Rental Management Project Scheduling Scrum Project Scheduling Freight Project Gantt |
Gantt chart for Odoo
Web Gantt
Interactive Gantt views inside Odoo with timelines, dependencies, progress, grouping, and optional PDF export. Built on the Twproject open-source Gantt library (MIT) and integrated with modern OWL web assets.
Core capabilities
From declarative XML views to drag-friendly editing, the module brings classic Gantt ergonomics to any model that exposes start, stop, progress, and relationships.
Timeline & zoom
Switch between day, week, month, and year scales to plan near-term execution or long-range portfolios without leaving the record.
Dependencies
Model task links with a many2many dependency field so predecessors and successors stay visible on the chart.
State or stage
Drive bar colors from selection states or project stages, including dynamic color fetching and optional read-only status in the Gantt.
Grouping & hierarchy
Default group-by fields, parent and child task links, and consolidation options structure large workloads cleanly.
Resource overlap hints
Optional mixin surfaces overlapping assignments so planners can resolve conflicts before they hit execution.
Export & constraints
PDF export for sharing snapshots, optional holiday blocking for date moves, and attributes tuned per arch definition.
Benefits
Teams stop exporting to spreadsheets for timelines. Planning, status, and ownership stay on the same Odoo records your operations already trust.
Single source of truth
Dates, progress, and assignments update through the Gantt against real ORM fields instead of duplicate tools.
Faster stakeholder alignment
Visual bars communicate schedules and bottlenecks more clearly than grid-only lists for managers and clients.
Flexible integration
Declarative viin_gantt views let you wire projects, services, manufacturing, or custom apps with the fields you already use.
Proven Gantt engine
Leverages the Twproject Gantt component under MIT license with Viindoo extensions for Odoo 17 web client patterns.

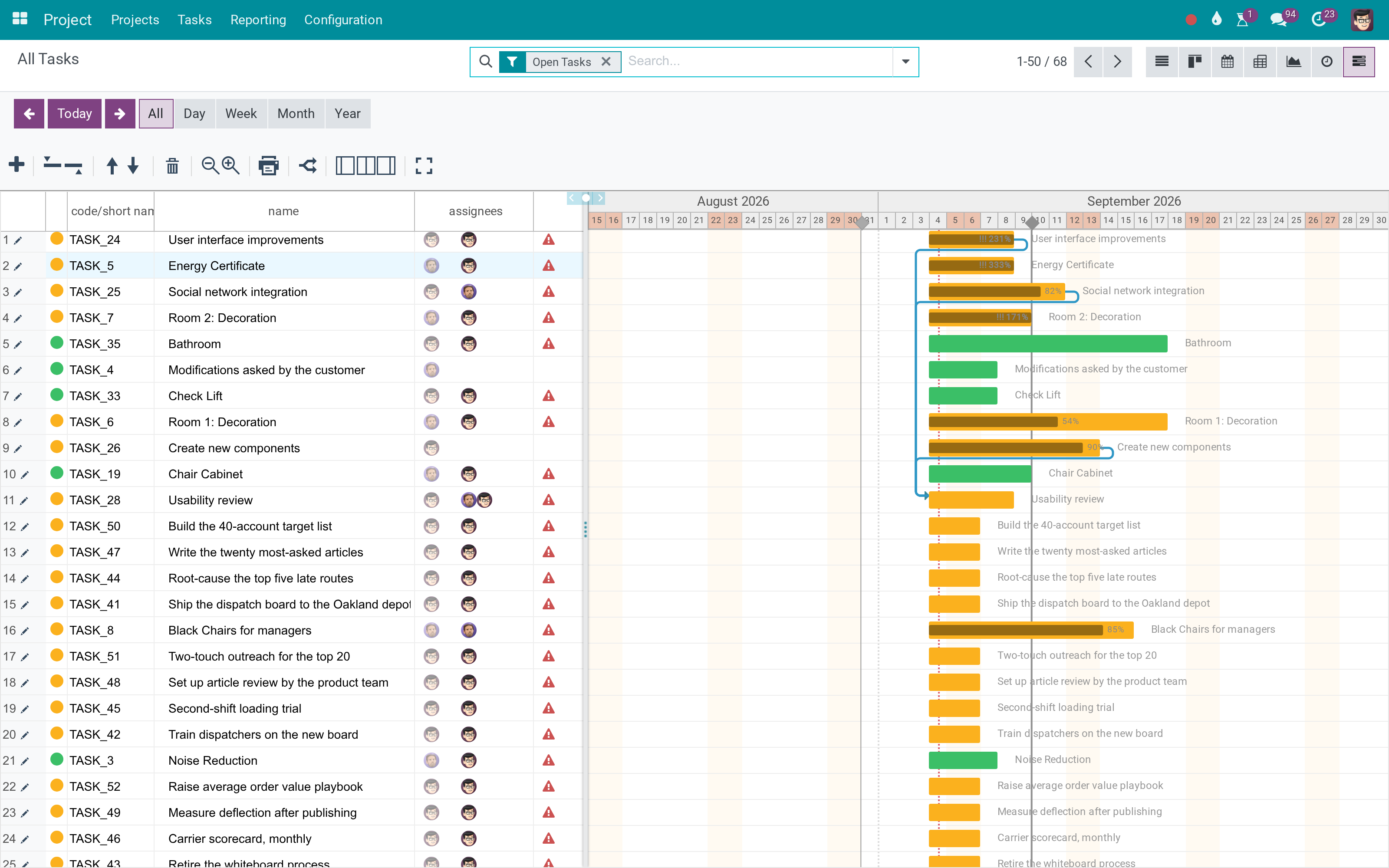

Web Gantt overview
viin_gantt arch with date_start, date_stop, default_group_by, plus optional manager, members, progress, depends, and status mapping.state with color lists or stage with domain filters, dynamic colors, and optional read-only status editing in the chart.Plan on a timeline
Scan workloads across time, adjust dates, and keep progress visible without leaving Odoo.
Try Viindoo online
Explore a full Odoo environment where Viindoo apps are pre-installed. Open Project Scheduling or other Gantt-enabled menus after installing the matching companion app (see companion Gantt apps).
Pre-Sales Question
Need help before purchasing? Share module name and version, Odoo edition (Odoo CE / Viindoo Editions), and the model you want to show on a Gantt. Attach a sample view arch or screenshot if possible.
sales@viindoo.comSupport
For technical assistance, include your order number, the Gantt XML snippet, expected behavior, actual behavior, and any browser console errors or screen recordings.
apps.support@viindoo.comTechnical requirement
- Odoo 17 with the standard
webmodule (OWL client). - Supported on Odoo Community Edition.
- Models should expose start and stop datetime fields, a default group-by field, and optionally progress, dependencies, manager, and members.
- Stage mode requires a status field mapping (for example
field_status) and related stage configuration including colors when using stage coloring. - QUnit tests ship under
web.qunit_suite_testsfor arch parsing and view behavior.
Changes log
- v0.1.1 - Maintenance and compatibility updates for Odoo 17 web client integration.
- v0.1.0 - Initial Web Gantt view, Twproject-based renderer, PDF export hooks, gantt mixin for overlap insights, and arch parser for
viin_ganttdefinitions.
Who should use this module?
Roles that benefit most from timeline views, PDF exports, and declarative Gantt definitions inside Odoo.
Project and service teams
Coordinate phases, milestones, and assignments with dependencies visible on one timeline.
Operations and PMO
Compare schedules across groups, export PDF snapshots for governance packs, and spot overloaded resources.
Odoo implementers
Deliver Gantt experiences on custom models using declarative XML without rebuilding a chart from scratch.
Extend Web Gantt with companion apps
This module is the shared OWL Gantt engine. Add companion apps that connect Web Gantt to the workflows you already use (projects, logistics, fleet, and more) so teams open timelines on the right records without building a custom chart UI.
Popular companion apps
Project Scheduling
Use Gantt charts to plan, allocate resources, and determine the time to do each task based on scheduled hours, and the start and end dates.
View on AppsScrum Project Scheduling
Use Gantt charts to plan, allocate resources, and determine the time to do each epic/user story based on the start and end dates.
View on AppsFreight Project Gantt
Enable the Viindoo Gantt view for Freight Project tasks to plan and reschedule visually.
View on AppsMore integrations
More companion apps cover additional industry-specific flows. Search your app marketplace for gantt or contact sales to match listings to the apps you already run.
