Warranty management

This article will guide you through the creation process of a warranty claim to a vendor/customer.

Requirements

This tutorial requires the installation of the following applications/modules:

Create a warranty claim

You can create a warranty claim in 2 methods:

For the second method, you can see detailed instructions for warranty claim creation in operation with a vendor or a customer.

Warranty claim to a vendor

After registering products with respective lots/serial numbers, you can create a warranty claim to the vendor by navigating to Warranty ‣ Warranty Claim ‣ Draft, press Create to make a new warranty claim.

Create a new warranty claim

Add the following information:

Warranty claim details
  • Lots/Serial Numbers: Insert the Lots/Serial Numbers of registered products.

  • Products: Select the product which is subject to this warranty claim.

  • Partner Type: Select the Vendor type.

  • Partner: Select contact details of the vendor who carries out the warranty.

  • Purchase Order: The purchase order corresponding to the chosen lot/serial number above will be displayed automatically here, or you can select from one of the purchase orders related to the chosen vendors.

  • Date Claim: By default, the system registers the warranty claim creation moment. However, you can edit this information accordingly.

  • Responsible: The creator of this warranty claim is recorded by default and you can also assign it to another user.

  • Warranty Start Date: The receiving products date.

  • Warranty period (months): The warranty period is suggested based on the product’s configuration. See more in Set up and manage the warranty information of the products.

  • Warranty Expiration Date: The expiration date is calculated based on the start date and the total warranty time.

  • Warranty milestone details: In this table, add corresponding details at the warranty claim creation. For example, the SH Mode motorcycle is under a 24 months warranty issued by a vendor. 2 months after receiving the product, you need to send the vendor a warranty claim. In the warranty claim, add the following details:

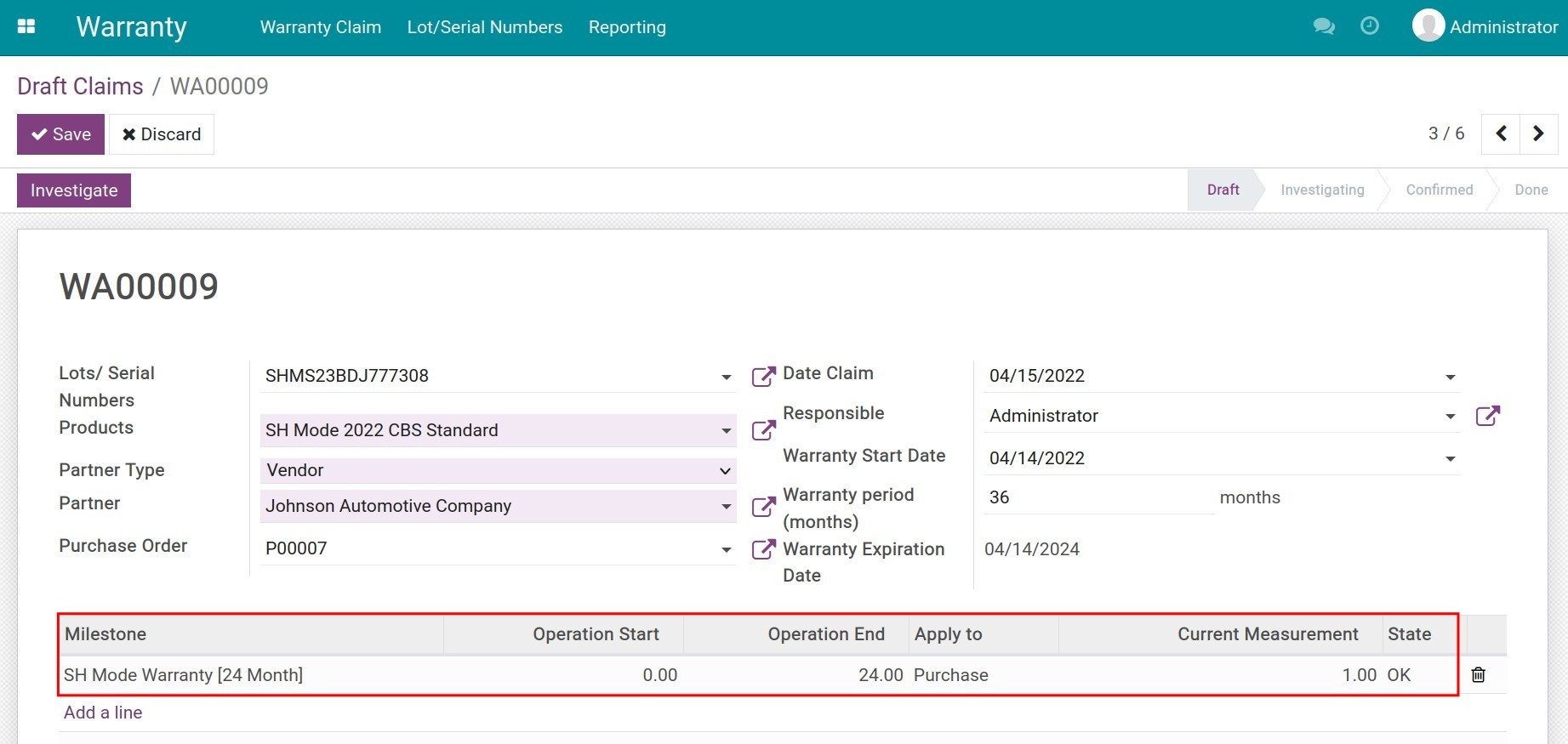

    Add milestone details to a warranty claim
    • Operation Start: Initial usage time at the receiving product-moment which is recorded at the Lots/Serial Numbers settings.

    • Operation End: Sum of the operation start and the product milestone time configured on the product itself. In this example, the system automatically calculates 24 months.

    • Current Measurement: Number of months in use of the vehicle starting from the receiving moment, in this example it’s 2 months.

    • State: If the current indicator still falls between the operation start and the operation end, then the state of the warranty is OK. Otherwise, the state is Not OK.

    • Note: Add the warranty reason.

Press Save to register the information. After checking the details on the warranty claim and making sure that everything is correct, press Investigate to start the warranty claim investigation process. The warranty claim status now is changed to Investigating.

Start the warranty claim investigation process Warranty claim status changed

Warranty claim of a customer

After confirming the delivery of products to the end customer, create a warranty claim for the customer similar to this. In this warranty claim, you need to change the partner type to Customer and select the respective Sale Order.

Create a warranty claim for a customer

When you are done with filling out all the information, press Investigating to start the warranty claim investigation process.

Start investigating the customer warranty claim

Investigating warranty claims

Navigate to Warranty ‣ Warranty Claim ‣ Investigating. All the warranty claims to be investigated will be displayed in this section.

List of investigating warranty claims

In each warranty claim detail, press on Confirm to accept the warranty claim or Disclaim to reject that claim. The warranty claim status will be changed to Confirmed or Disclaimed accordingly.

Confirm a warranty claim Complete a warranty claim

At this step, the person in charge of warranty operations can filter out the valid claims by navigating to Warranty ‣ Warranty Claim ‣ Confirmed Claims.

List of confirmed warranty claims

Once the warranty is provided, at the claim view, press Mark as done to complete the warranty process.

Mark a warranty claim as done

To view the done warranty claim, go to Warranty ‣ Warranty Claim ‣ Done Claims.

Search for done warranty claims List of done warranty claims
